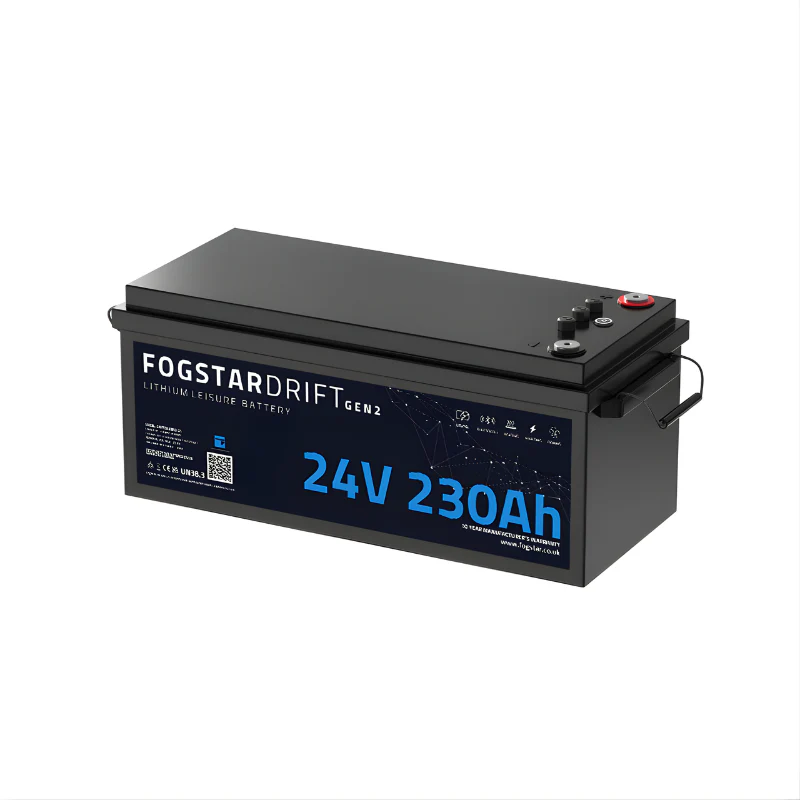

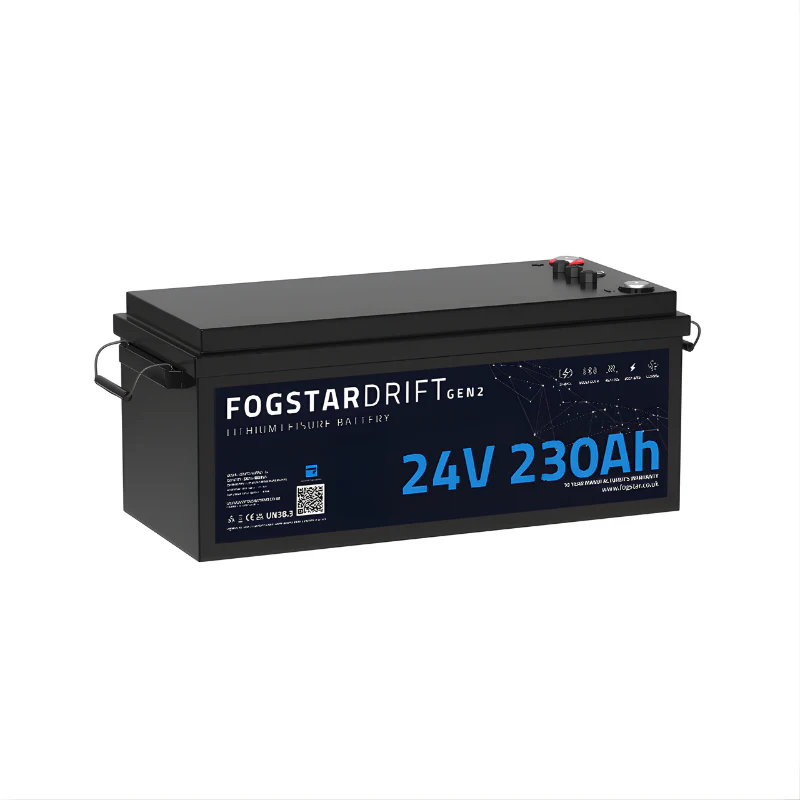

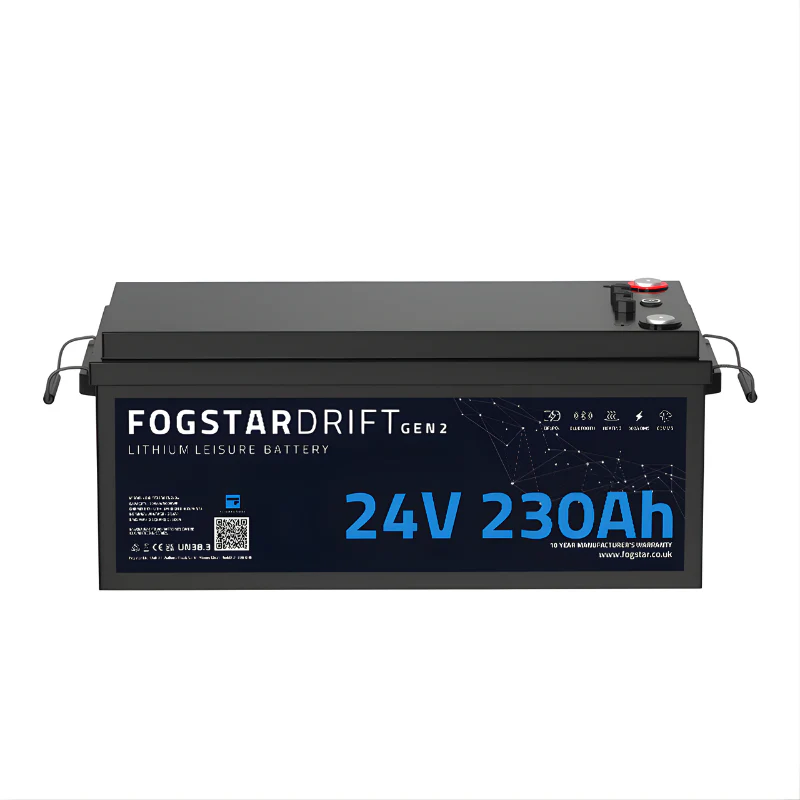

Fogstar Drift 24V 230Ah Lithium Leisure Battery (Gen2)

High-capacity 24V power engineered with the enhanced accuracy and efficiency of the Drift Gen2.

The Fogstar Drift Gen2 24V 230Ah LiFePO4 Battery is built for off-grid systems that demand stable, efficient and long-lasting energy storage. With refined monitoring hardware, tougher internal engineering and improved power handling, it delivers reliable performance across campervans, boats, off-grid cabins and 24V solar installations.

Key Features

• 300A Smart BMS for High-Demand Systems:
  The next-generation 300A Battery Management System handles heavy loads with ease. Perfect for powerful inverter setups and demanding off-grid applications.
• 0.2A Shunt Accuracy:
  Drift Gen2 delivers highly accurate power monitoring, giving you tighter state-of-charge readings and more reliable system performance.
• Active Cell Balancer for Maximum Efficiency:
  A built-in active balancer keeps every cell perfectly aligned. This boosts efficiency, improves cycle life and maintains consistent output.
• Premium EVE Prismatic Cells:
  Built with Grade A LF230 EVE cells that deliver consistent performance, solid stability, strong safety and a long service life.
• Full Victron Plug-and-Play Integration:
  Drift Gen2 communicates cleanly with Victron systems for faster installation and more accurate system data.
• IP67 Waterproof and Dustproof:
  Fully sealed against water and dust. Ideal for marine installations, damp lockers and rugged environments.
• Bluetooth Monitoring via the Fogstar App:
  Track real-time voltage, current, SOC, temperature and more using the Fogstar Drift App for iOS and Android.
• Automatic Low-Temperature Heating:
  The built-in heater automatically warms the battery to a safe temperature before charging, protecting the cells in cold weather.
• Improved Hardware and Design:
  A custom lid, upgraded terminals and a physical on/off switch make installs cleaner and maintenance easier.
• Designed & Supported in the UK:
  Created by our award-winning engineering team with full UK-based technical support. Backed by a 10-year warranty.

Technical Specifications

• Energy: 5,888Wh
• Capacity: 230Ah
• Voltage: 25.6V LiFePO4
• Cycle Life: 4000 Cycles (80% DOD)
• Recommended Charge Voltage: 28.4V
• Max Continuous Discharge: 300A
• Cell Type: EVE Grade A LF230
• BMS: 300A Smart BMS with 0.2A shunt accuracy and active balancing
• Monitoring: Bluetooth via Fogstar Drift App
• Heating: Integrated low-temp heating
• IP Rating: IP67
• Dimensions: 520 (L) x 238 (W) x 221 (H)
• Weight: Approx 38Kg
• Terminals: M8 – 1.25 pitch – 12mm (bolts included).

System Configuration Options

• Connect up to 2 batteries in series for 48V systems
• Connect up to 16 batteries in parallel to increase total capacity
