Looking for a high-performance 12V pure sine wave inverter for your off-grid power system? The Renogy 2000W Pure Sine Wave Inverter with Transfer Switch is the perfect power solution for vans, RVs, semi-trucks, cabins, fifth wheels, and remote off-grid applications. This DC to AC inverter converts 12V battery power into clean, stable 120V AC power, allowing you to safely run sensitive electronics and household appliances anywhere.
Key Features:
⚡ High-Efficiency DC to AC Conversion
Delivering 2000W of continuous power and up to 4000W surge capacity, this power inverter provides over 91% conversion efficiency—perfect for powering high-demand startup loads like refrigerators, tools, and motors.
? Built-In Automatic Transfer Switch (UPS Function)
Enjoy uninterrupted power with a smart transfer switch that automatically switches from battery power to shore or grid power when available—no manual intervention needed.
? Pure Sine Wave Output for Sensitive Electronics
Renogy’s advanced pure sine wave technology ensures clean, consistent power—ideal for laptops, TVs, CPAP machines, and other sensitive devices. No humming, no damage—just reliable, grid-quality electricity.
? User-Friendly Interface & Connectivity
Equipped with a built-in 5V/2.1A USB charging port, AC outlet, hardwired AC output terminal, and wired remote control port for convenient monitoring and control of your inverter system.
✅ Safety-Certified & Built to Last
RoHS compliant and certified to meet global safety standards, this 12V inverter is built for long-lasting, reliable performance in demanding conditions.

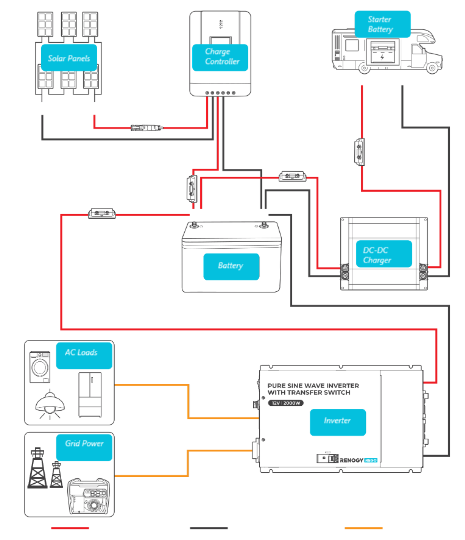

Perfect for off-grid solar systems, emergency backup power, or mobile power setups, the Renogy 12V 2000W Pure Sine Wave Inverter delivers clean, powerful, and dependable energy wherever you need it.
| Renogy 2000W Inverter Charger (Model RIV1220PU-235-UK) | |||
|---|---|---|---|
| Inverter Output | Inverter Output | ||
| Continuous Output Power | 2000W | Surge Power | 4000W (0.1s), 3000W (5s), 2400W (60s) |
| Nominal Output Voltage | 230V AC (RMS) | Continuous Output Current | 8.7A AC |
| Output Frequency | 50Hz (±0.1Hz) | Waveform | Pure Sine Wave |
| Total Harmonic Distortion (THD) | <3% (Resistive Load) | Inverter Efficiency | Up to 91% |
| Full Load Efficiency | 87% | No Load Consumption | <12W (Normal) |
| ECO Mode Loss | 9W | Short Circuit Protection | Software & RCD |
| DC & AC Input | Transfer Switch Specs | ||
| Nominal DC Input Voltage | 12V DC | Transfer Time | Max. 20 ms |
| DC Input Voltage Range | Operating: 10.5–15.5V, Full Load: 11–15.5V | Transfer Relay Rating | 16A Maximum |
| AC Input Voltage Range | 187–264V AC (40–70Hz) | AC Bypass Power | 2000W Maximum |
| General Specifications | Environmental & Mechanical | ||
| Battery Types | SLD, AGM, GEL, FLD, LI | Operating Temperature | -4°F to 140°F / -20°C to 60°C |
| Derating | Output reduces 2%/°C above 104°F (40°C), reaching 1200W at 140°F (60°C) | ||
| Storage Temperature | -40°F to 158°F / -40°C to 70°C | Humidity | 0% to 95% RH |
| Protection Rating | IP20 | Noise | <50dB |
| Dimensions | 14.84 x 9.06 x 3.94 in / 377 x 230 x 100 mm | Weight | 8.82 lbs / 4 kg |
| Remote Control & Certification | Warranty | ||
| Remote Control Dimensions | 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8 mm | Wire Length | Approx. 16.4 ft |
| EMC Standards | EN 61000-6-1, EN 61000-6-3, BS EN 61000-6-1, BS EN 61000-6-3, AS/NZS CISPR 32 | ||
| Safety Standards | EN 62477-1, BS EN 62477-1, AS/NZS 4763 | ||
| Warranty | 3-Year Material & Workmanship Warranty | ||
